A/C Control Module Connector End View (M06-A)

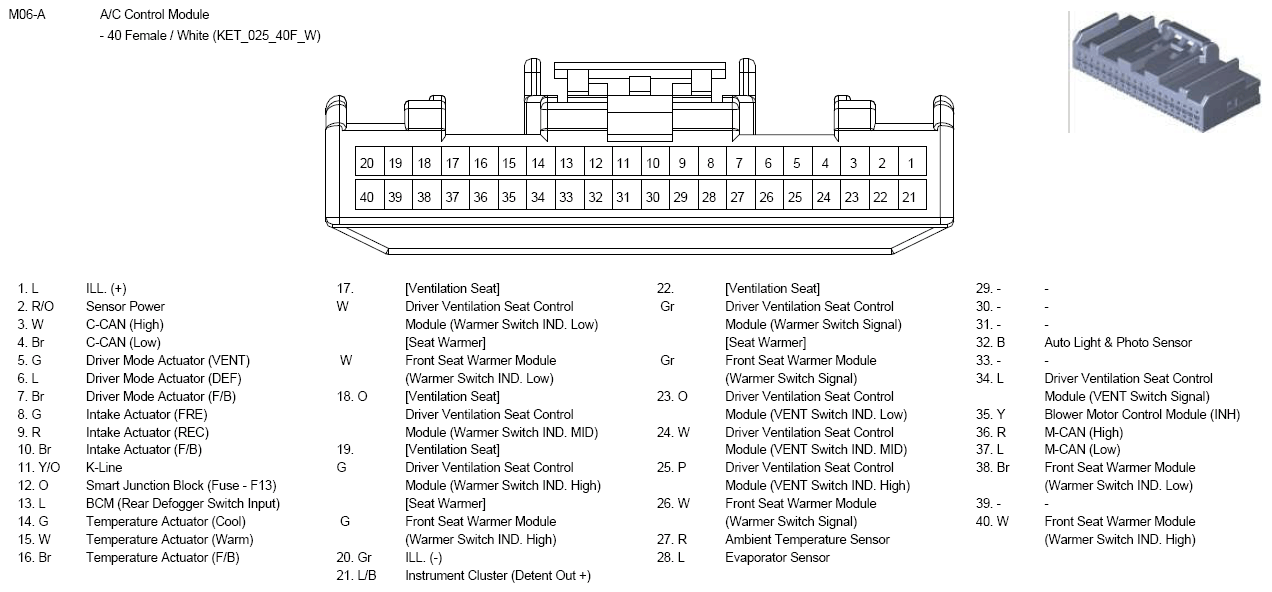

Fig 1: A/C Control Module Connector End View (M06-A)

G10794074

Courtesy of KIA MOTORS AMERICA, INC.
