Monitor GDS Data

  1. Ignition "OFF", Connect GDS to Data Link Connector(DLC).
  2. Shift the gear to the P position & Ignition "ON", and select the "Current Data" mode.
  3. Check the relevant DTC readings of Current Data. (Measure the sensor data through test driving if necessary)

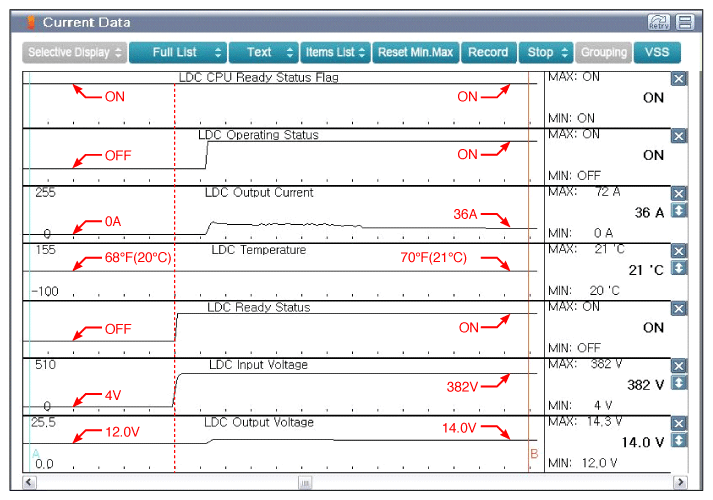

    Fig 1: Screen Display - Relevant DTC readings Of Current Data (Graph Mode)
    G10747804Courtesy of KIA MOTORS AMERICA, INC.

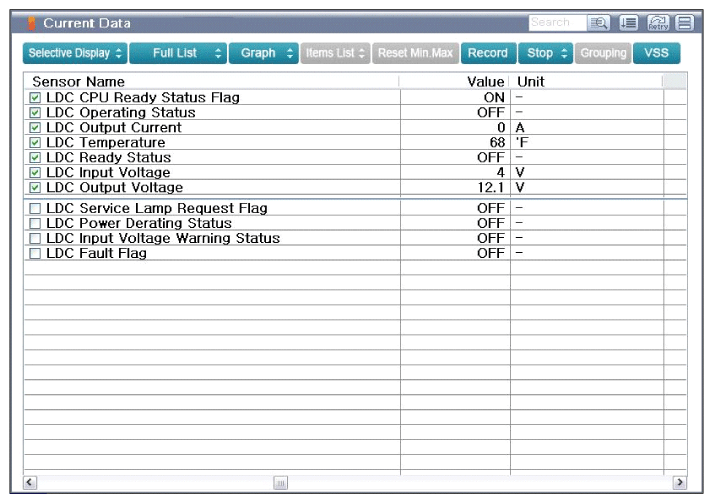

    Fig 2: Screen Display - Relevant DTC readings Of Current Data (Text Mode)
    G10747805Courtesy of KIA MOTORS AMERICA, INC.

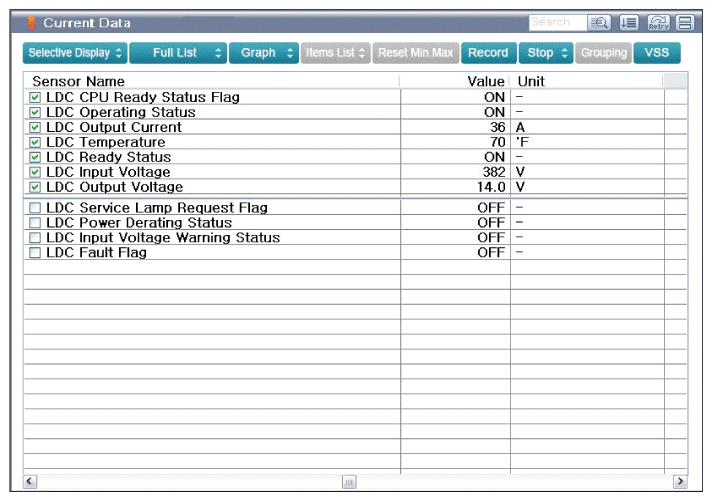

    Fig 3: Screen Display - Relevant DTC readings Of Current Data (Text Mode)
    G10747806Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the measured data within specifications?

    YES

    • Repair or replace as necessary and then go to "Verification Of Vehicle Repair " procedure.

      * After replacing the LDC, and electric water pump (EWP), it is necessary to operate the electric water pump (EWP) with GDS and supplement and circulate the coolant.

    NO
