Monitor DTC Status

Connect GDS to Data Link Connector(DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

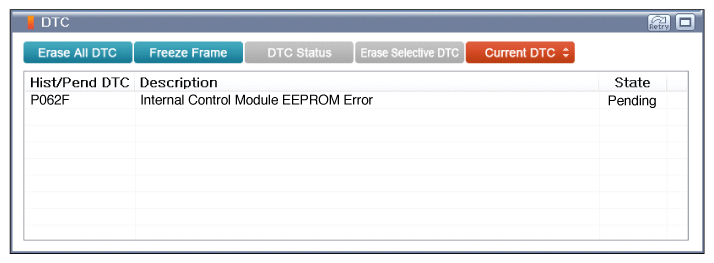

Fig 1: Screen Display - DTC Status (History)
Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status displayed as Present(Pending)?
YES
- Go to next procedure.
NO
- Erase the DTCs that stored as history, and then go to "Verification Of Vehicle Repair " procedure.
If the Pending DTC, select "Freeze Frame"(Fig 2) and monitor "Information Code"(Fig 3).

Fig 2: Screen Display - DTC Status (Pending)
Courtesy of KIA MOTORS AMERICA, INC.

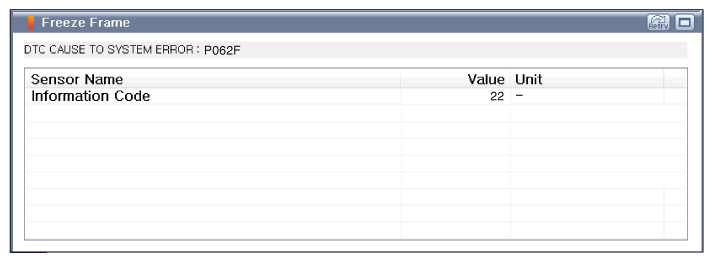

Fig 3: Screen Display - Freeze Frame
Courtesy of KIA MOTORS AMERICA, INC.

Perform applicable repair procedure for "Information Code" and perform following procedure.

Information Code	Possible cause
22	EEPROM module malfunction occurred
