Description And Operation: Description

Component location:  Control shaft assembly is mounted on the top of the manual transaxle

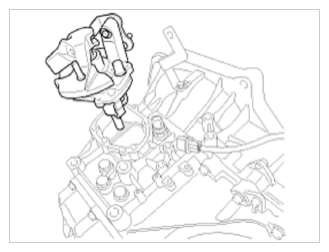

Fig 1: Control Shaft Component Location

Courtesy of KIA MOTORS AMERICA, INC.

Function:  Change the gear by shifting a shift lever.
