Repair Procedures: Replacement

Uplift the vehicle with lift.
Remove the under cover.
(Refer to "ENGINE ROOM UNDER COVER ")
Drain the manual transaxle oil after loosening the drain plug (A).

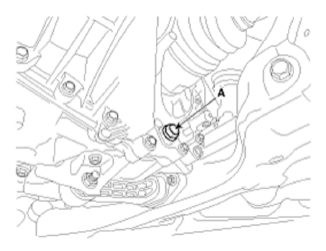

Fig 1: Manual Transaxle Oil Drain Plug
Courtesy of KIA MOTORS AMERICA, INC.
Install the drain plug with new gasket.
Tightening torque:

58.9 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.9 lb-ft)
Loosen the oil filler plug (A).

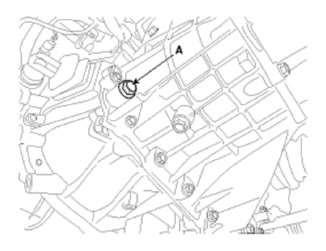

Fig 2: Oil Filler Plug
Courtesy of KIA MOTORS AMERICA, INC.
Add new oil through the filler plug hole and, fill it just below the plug opening.
Standard oil: SAE 75W/85, API GL-4

Oil capacity:

1.8 ~ 1.9 L (0.46 ~ 0.50 U.S.gal., 1.90 ~ 2.01 U.S.qt., 1.58 ~ 1.67lmp.qt.)
Install the oil filler plug.
Tightening torque:

58.9 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.8 lb-ft)
