Repair Procedures: Inspection

Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to "BATTERY ")
Disconnect the back up lamp switch connector (A).

Fig 1: Back Up Lamp Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity.

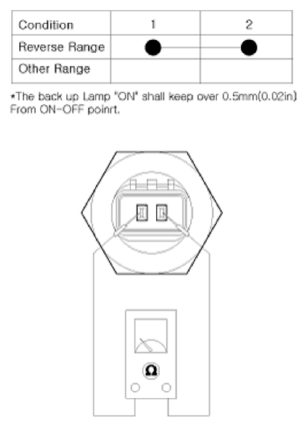

Fig 2: Backup Lamp Switch Continuity Reference Chart
Courtesy of KIA MOTORS AMERICA, INC.
