Repair Procedures: Replacement

Remove the front door trim.
(Refer to "FRONT DOOR TRIM ")

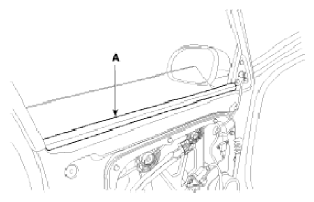

Remove the front door belt inside weatherstrip (A).

Fig 1: Front Door Belt Inside Weatherstrip
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front door window glass mounting hole plug (A).

Fig 2: Front Door Window Glass Mounting Hole Plugs
Courtesy of KIA MOTORS AMERICA, INC.
Before removing the front door glass (C), loosen the mounting bolt (A) as loosely as possible and loosen the mounting bolt (B) completely.
Tightening torque: 7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

Fig 3: Front Door Glass And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Be careful not to drop the glass and/or scratch the glass surface.
Information
- Use the door switch to align the mounting hole/bolt with the hole in the door.
- If unable to operate the window motor, remove the motor and align the hole by hand.

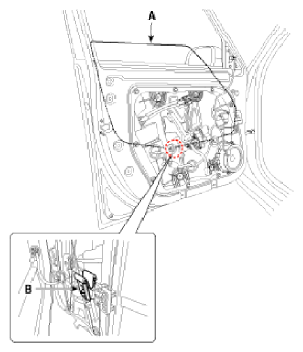

Carefully adjust the front door window glass (A) until you can see the bolts, then loosen them. Separate the glass from the glass run and carefully pull the glass out through the window slot.
Information
- When removing the front door glass, be careful not to separate the glass mounting bracket (B).

  Fig 4: Front Door Window Glass & Mounting Bracket
  Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Roll the glass up and down to see if it moves freely without binding.
- Adjust glass position as needed.
- Make sure the door lock and opens properly.
- Replace any damaged clips.
