Repair Procedures: Replacement

CAUTION:

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Be careful not to scratch the door trim and other parts.

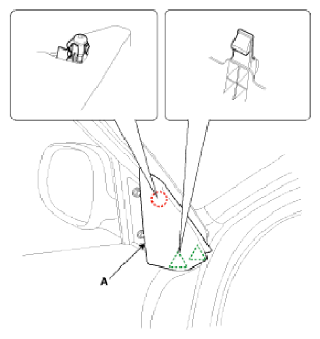

Using a screwdriver or remover, remove the front door quadrant inner cover (A).

Fig 1: Front Door Quadrant Inner Cover & Clip Locations
Courtesy of KIA MOTORS AMERICA, INC.

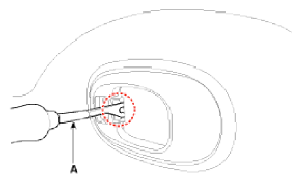

Using a flat-tip screwdriver (A), remove the front door inside handle cap (B) and front door pull cap (C).

Fig 2: Removing Front Door Inside Handle Cap
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Front Door Inside Handle Cap And Front Door Pull Cap
Courtesy of KIA MOTORS AMERICA, INC.

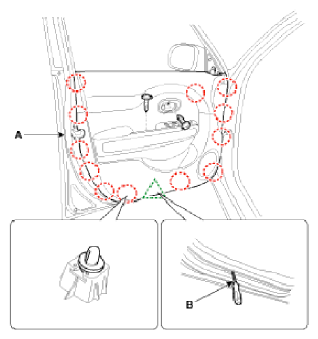

After loosening the mounting screws, then remove the front door trim (A) by using a flat-tip screwdriver (B).

Fig 4: Front Door Trim, Flat-Tip Screwdriver & Clip Locations
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front door inside handle cage (A).

Fig 5: Front Door Inside Handle Cage
Courtesy of KIA MOTORS AMERICA, INC.

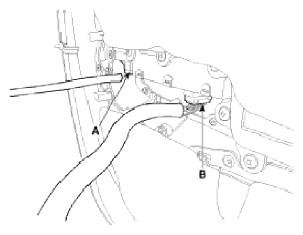

Disconnect the outside rear view mirror switch connector (A) and power window switch connector (B).

Fig 6: Outside Rear View Mirror Switch Connector And Power Window Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips.
