Repair Procedures: Replacement

Remove the front door module.
(Refer to "FRONT DOOR MODULE ")

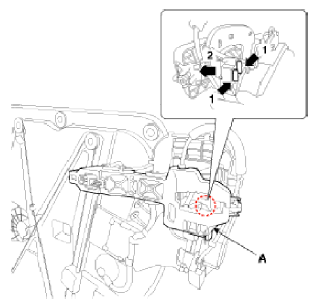

Remove the front door outside handle base (A) by pushing in the lock pins located in the back.

Fig 1: Removing Front Door Outside Handle Base
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front door outside handle connector wiring harness (A).

Fig 2: Front Door Outside Handle Connector Wiring Harness
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front door outside handle cable (A).

Fig 3: Removing Front Door Outside Handle Cable
Courtesy of KIA MOTORS AMERICA, INC.
To remove the front door outside handle base connector (A) after turning it counter clockwise.

Fig 4: Removing Front Door Outside Handle Base Connector (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Removing Front Door Outside Handle Base Connector (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front door outside handle connector wiring harness (A).

Fig 6: Front Door Outside Handle Connector Wiring Harness
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the front door latch connector (A).
Remove the front door latch assembly (B) by pulling it in the direction of the arrow.

Fig 7: Removing Front Door Latch Assembly
Courtesy of KIA MOTORS AMERICA, INC.

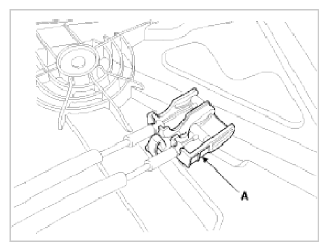

Remove the front door inside handle cage (A).

Fig 8: Front Door Inside Handle Cage
Courtesy of KIA MOTORS AMERICA, INC.

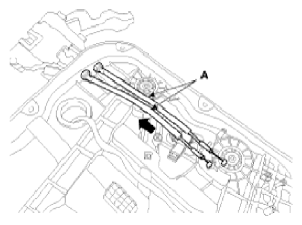

Remove the front door inside handle cable (A) by pushing it rearward.

Fig 9: Removing Front Door Inside Handle Cable
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips.
