Tailgate Open Switch

  1. Remove the tailgate trim.

    (Refer to TAIL GATE TRIM )

  2. Disconnect the connector from the actuator.

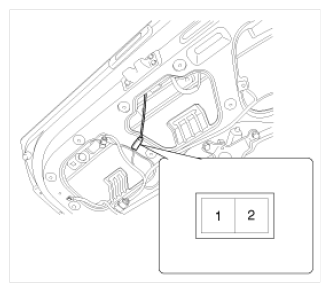

    Fig 1: Tailgate Open Switch Connector End View
    G09782498Courtesy of KIA MOTORS AMERICA, INC.
  3. Check for continuity between the terminals in each switch position according to the table.

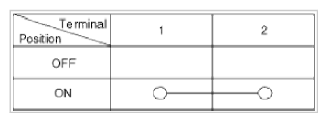

    Fig 2: Checking Continuity Between Terminals
    G09782499Courtesy of KIA MOTORS AMERICA, INC.
