Front Door Lock Module Inspection

Remove the front door trim.
(Refer to "FRONT DOOR TRIM ")
Remove the front door module.
(Refer to "FRONT DOOR MODULE ")
Disconnect the connectors from the actuator.

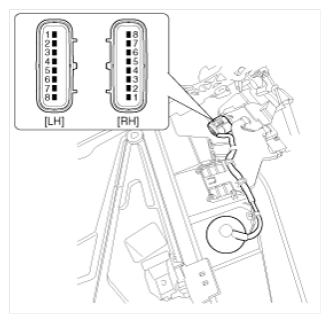

Fig 1: Front Door Lock Module Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.

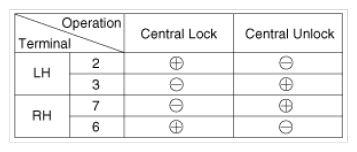

Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

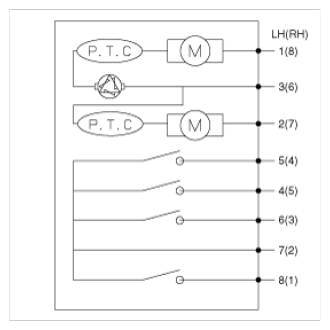

Fig 2: Front Door Lock Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Front Door Lock Module Terminal Functions
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals in each switch position according to the table.

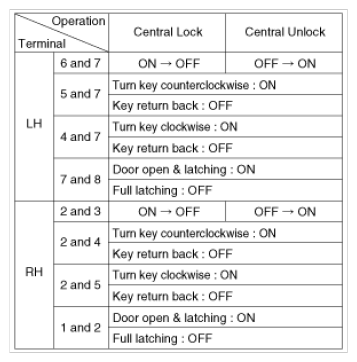

Fig 4: Front Door Lock Module Testing Chart
Courtesy of KIA MOTORS AMERICA, INC.
