Signal Waveform & Data

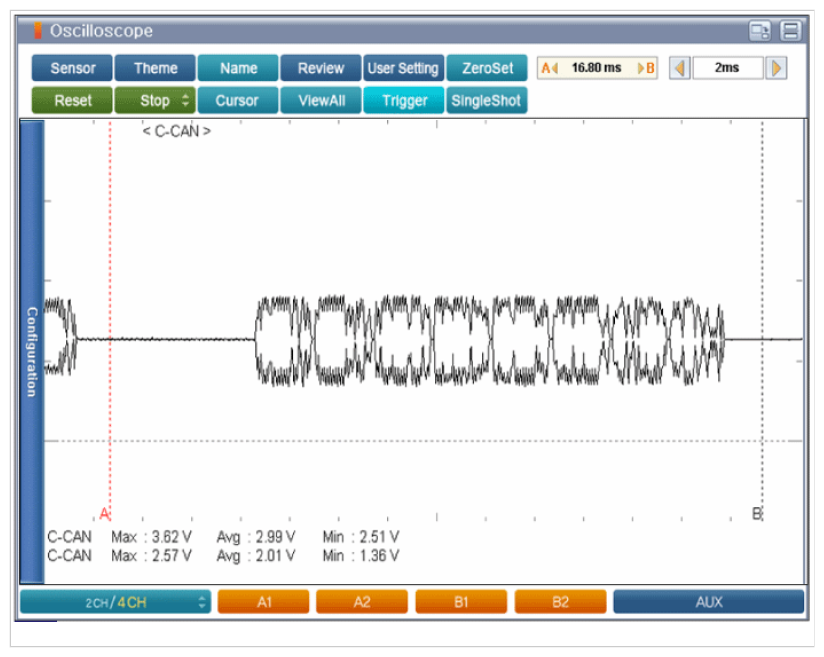

Fig 1: CAN Communication Waveform With Ignition On
G09777370Courtesy of KIA MOTORS AMERICA, INC.

Monitoring CAN HIGH and LOW simultaneously is important in monitoring CAN communication waveform. When CAN HIGH signal rise to 3.5V and LOW signal drops to 1.5V - voltage difference between HIGH and LOW signal is 2V.
