SRS Control Module Connector End View (F03)

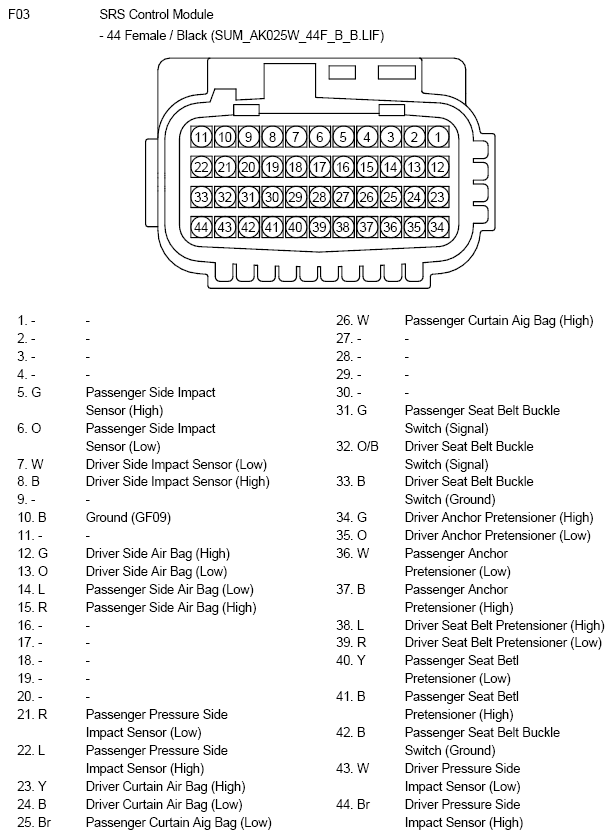

Fig 1: SRS Control Module Connector End View (F03)

G10793510

Courtesy of KIA MOTORS AMERICA, INC.
