Washer Level Sensor Connector End View (C128)

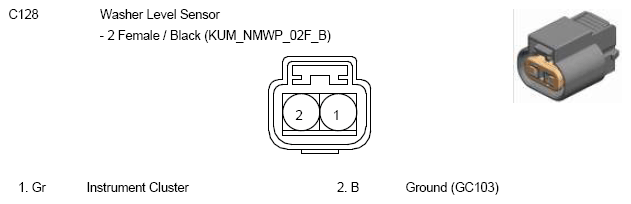

Fig 1: Washer Level Sensor Connector End View (C128)

G10793469

Courtesy of KIA MOTORS AMERICA, INC.
