Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to "MAIN CRASH PAD ASSEMBLY ")

  3. Loosen the mounting bolts and nut from the smart key unit bracket.

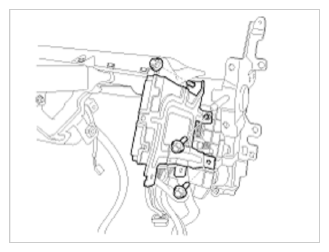

    Fig 1: Identifying Smart Key Unit
    G09778496Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the smart key unit (B) after disconnecting the connector (A) from the smart key unit.

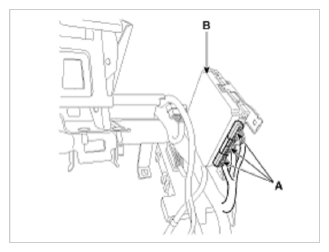

    Fig 2: Identifying Smart Key Unit And Connectors
    G09778497Courtesy of KIA MOTORS AMERICA, INC.
