Transmitter Code Registration (Using GDS)

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

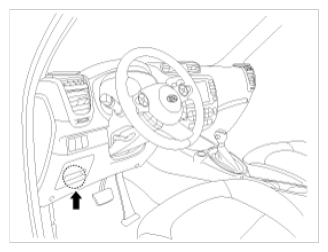

Fig 1: Data Link Connector Location
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "CODE SAVING"

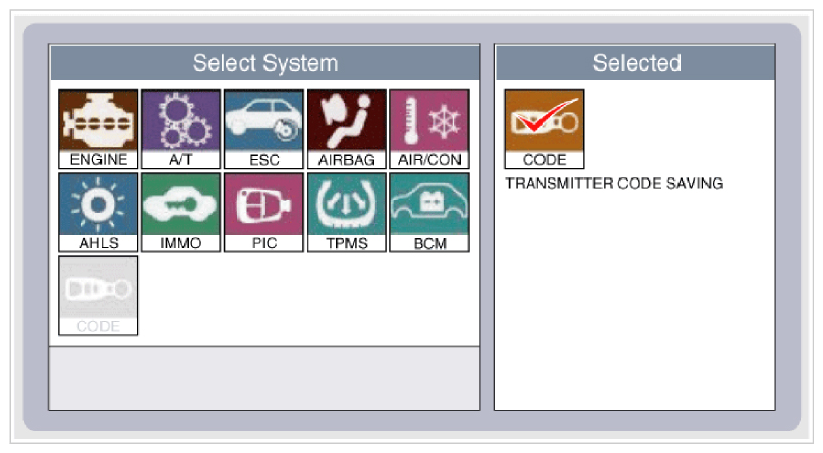

Fig 2: Transmitter CODE SAVING Screen
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "CODE SAVING" menu, button "ENTER" key, then the screen below will be shown.

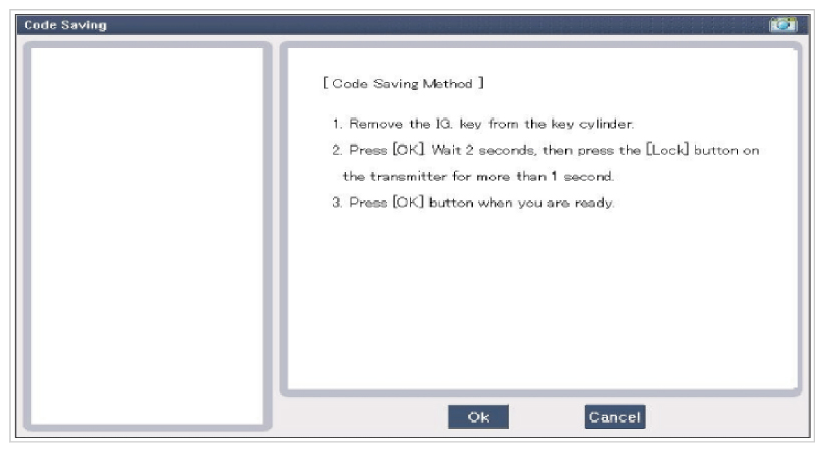

Fig 3: Code Saving Method Screen
Courtesy of KIA MOTORS AMERICA, INC.
After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

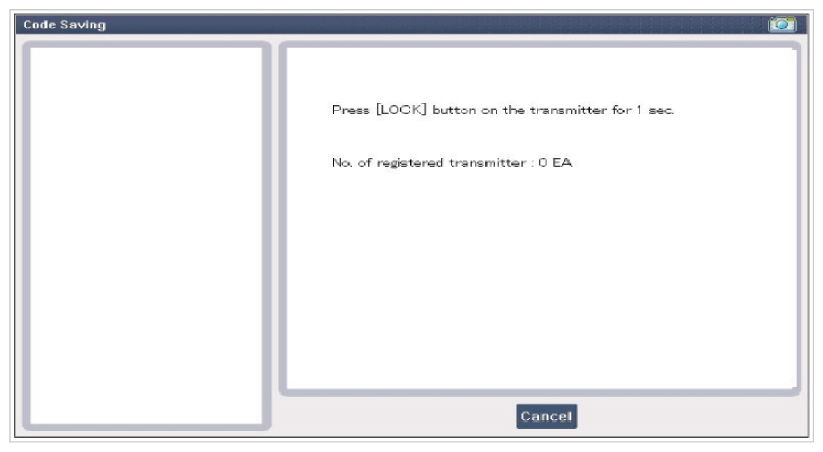

Fig 4: Press Lock Button Screen
Courtesy of KIA MOTORS AMERICA, INC.

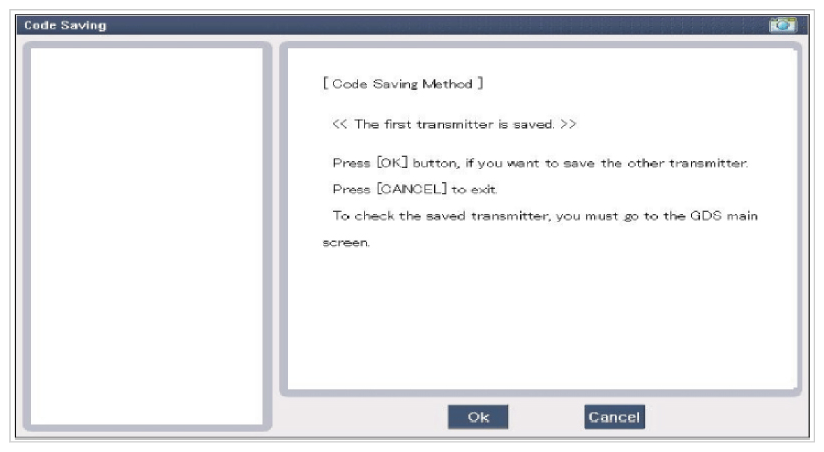

Fig 5: 1st Transmitter Saved Screen
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Press Lock Button Screen
Courtesy of KIA MOTORS AMERICA, INC.

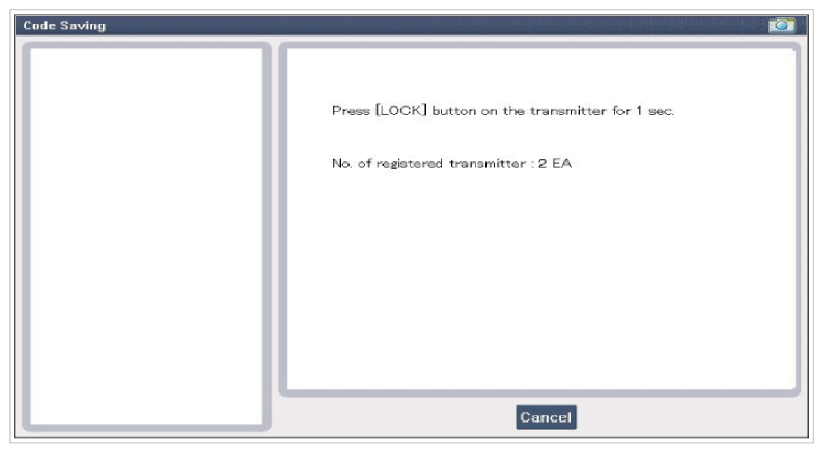

Fig 7: 2nd Transmitter Saved Screen
Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Press Lock Button Screen
Courtesy of KIA MOTORS AMERICA, INC.

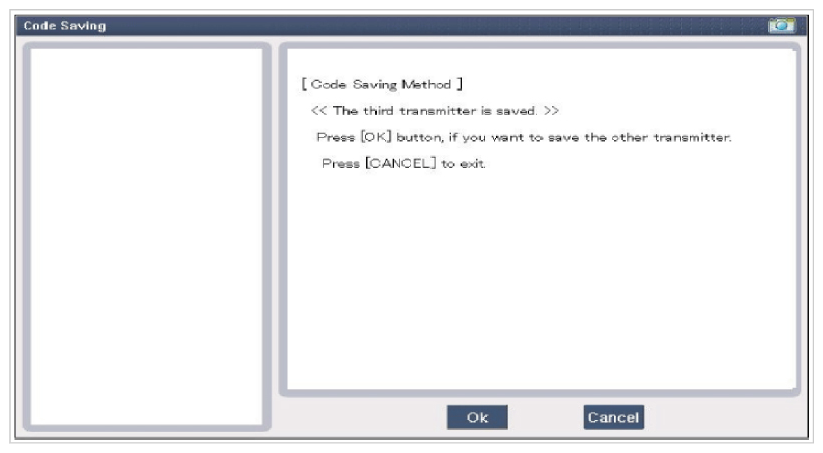

Fig 9: 3rd Transmitter Saved Screen
Courtesy of KIA MOTORS AMERICA, INC.

Fig 10: Press Lock Button Screen
Courtesy of KIA MOTORS AMERICA, INC.

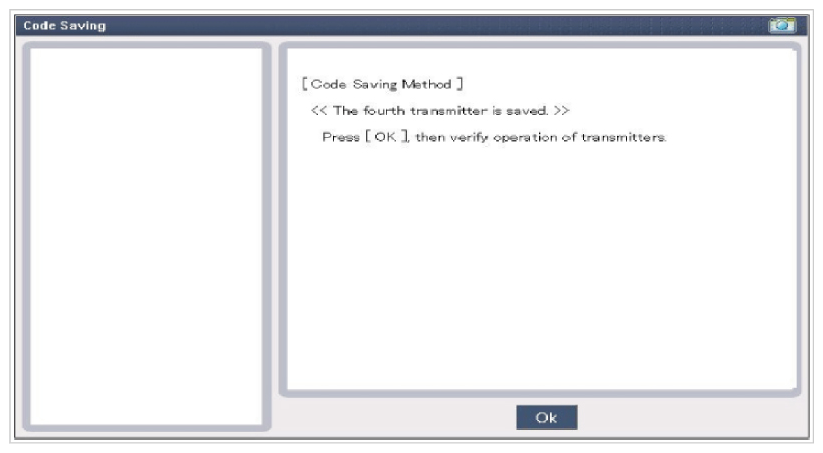

Fig 11: 4th Transmitter Saved Screen
Courtesy of KIA MOTORS AMERICA, INC.

Fig 12: Press Lock Button Screen
Courtesy of KIA MOTORS AMERICA, INC.
