Components And Components Location: Components

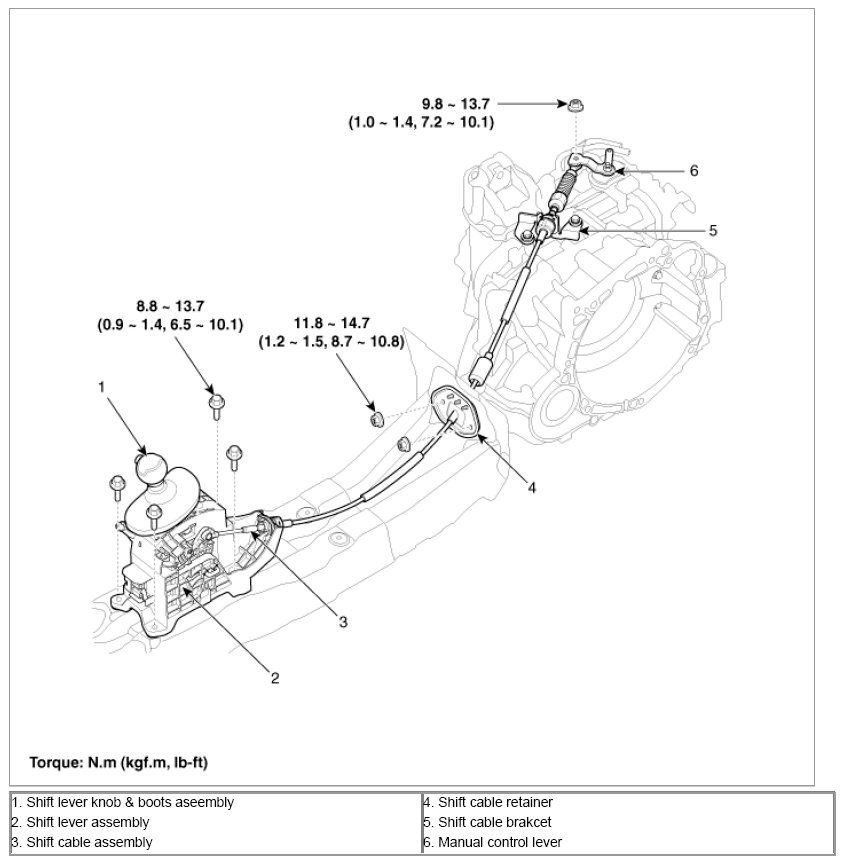

Fig 1: Shift Lever Components With Torque Specifications

G09773287

Courtesy of KIA MOTORS AMERICA, INC.
