Soul Base, Automatic Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle Control System - 1.6L
>>
Output Speed Sensor
>>
Troubleshooting
>>
Signal Waveform
Signal Waveform

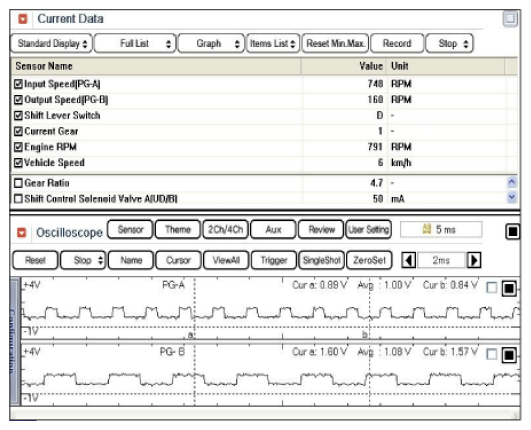

Fig 1: Display - Input/Output Speed Sensor At Low Speed
Courtesy of KIA MOTORS AMERICA, INC.

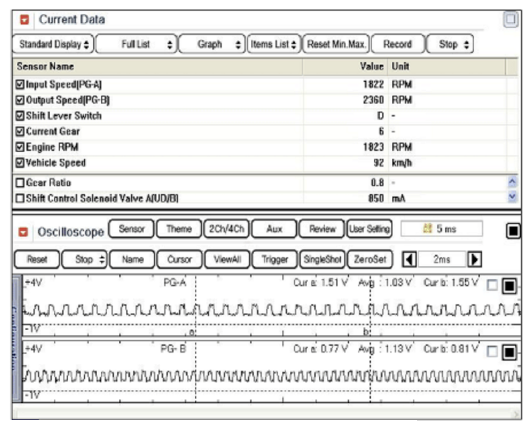

Fig 2: Display - Input/Output Speed Sensor At High Speed
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
