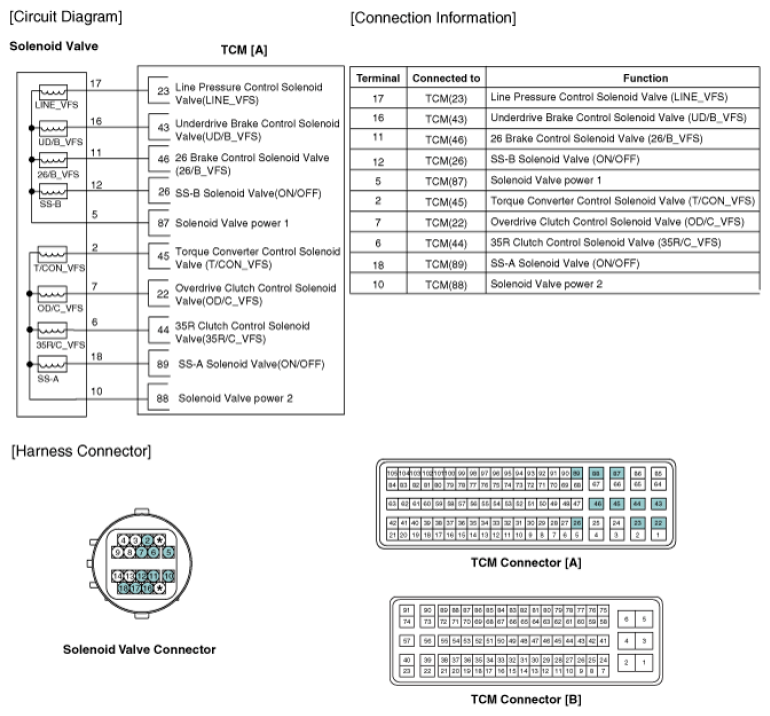

Home >> Kia >> 2015 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 1.6L >> Brake Control Solenoid Valve (26B_VFS) >> Schematic Diagrams >> Circuit Diagram
