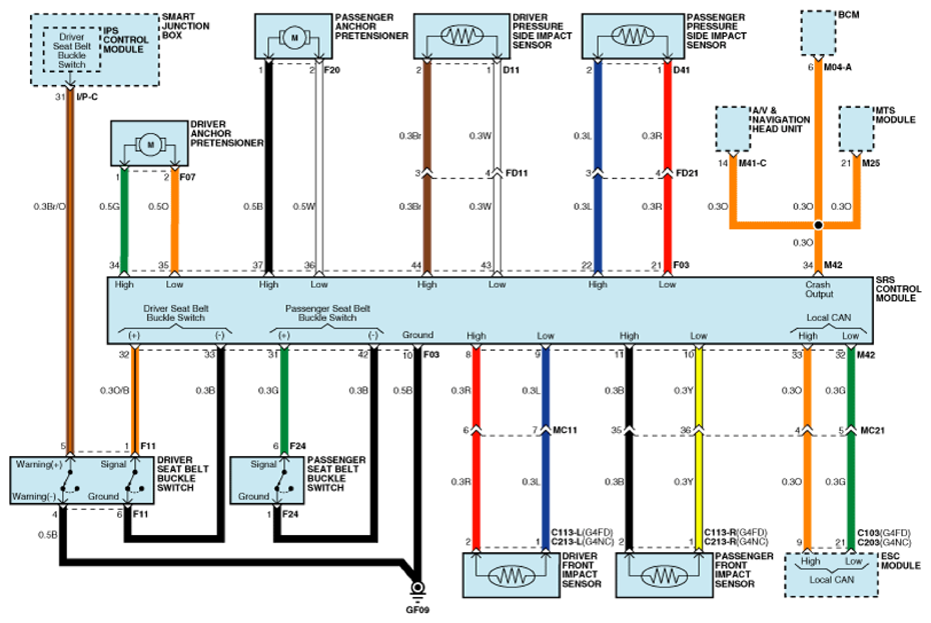

Home >> Kia >> 2015 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Restraint System Control Module (SRSCM), Occupant Detection System & Sensors >> Occupant Detection System (ODS) >> Schematic Diagrams >> Circuit Diagram (2)
