Oil Level Check

Remove the engine room under cover.
(Refer to "ENGINE ROOM UNDER COVER ")
Loosen the oil filler plug (A).

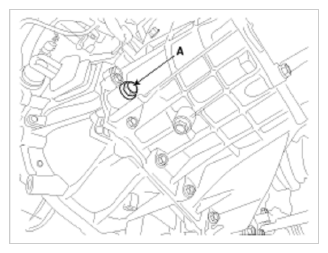

Fig 1: Identifying Oil Filler Plug
Courtesy of KIA MOTORS AMERICA, INC.
Check the oil level.
NOTE: Oil level should be consistent with the oil filler hole.
If not, should add oil through the oil filler plug hole.

Fig 2: Locating Oil Level
Courtesy of KIA MOTORS AMERICA, INC.
Install the oil filler plug with new gasket.
Tightening torque:

58.9 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.9 lb-ft)
Install the engine room under cover.
(Refer to "ENGINE ROOM UNDER COVER ")
