Repair Procedures: Inspection
- Check belt for maintenance and abnormal wear of V-ribbed part. Replace if necessary.NOTE:
- Do not bend, twist or turn the drive belt inside out.
- Do not allow the drive belt to come into contact with oil, water and steam.
- Visually check the belt for excessive wear, frayed cords etc.
If any defect has been found, replace the drive belt.

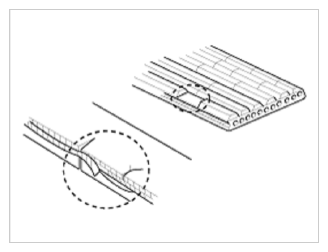

NOTE: If the belt is cracked on the side, consider if it is available. But if a chunk fall off from the belt, it should be replaced.
