Component Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clutch & ignition lock switch.
  2. Rotate the clutch switch lever to the direction of the arrow to check the continuity.

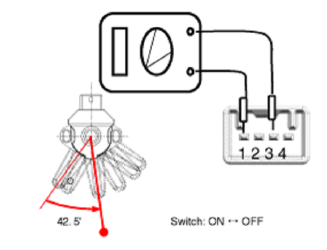

    Fig 1: Checking Clutch Switch Continuity
    G09773142Courtesy of KIA MOTORS AMERICA, INC.
    Clutch pedal position Clutch switch
    Released Continuity
    Fully pressed Open
    Fig 2: Ignition Lock Switch Circuit Diagram & Connector Terminal Identification
    G09773143Courtesy of KIA MOTORS AMERICA, INC.
