Section 13 (Automatic Transaxle Control System - 2.0L)
>>
Line Pressure Control Solenoid Valve
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

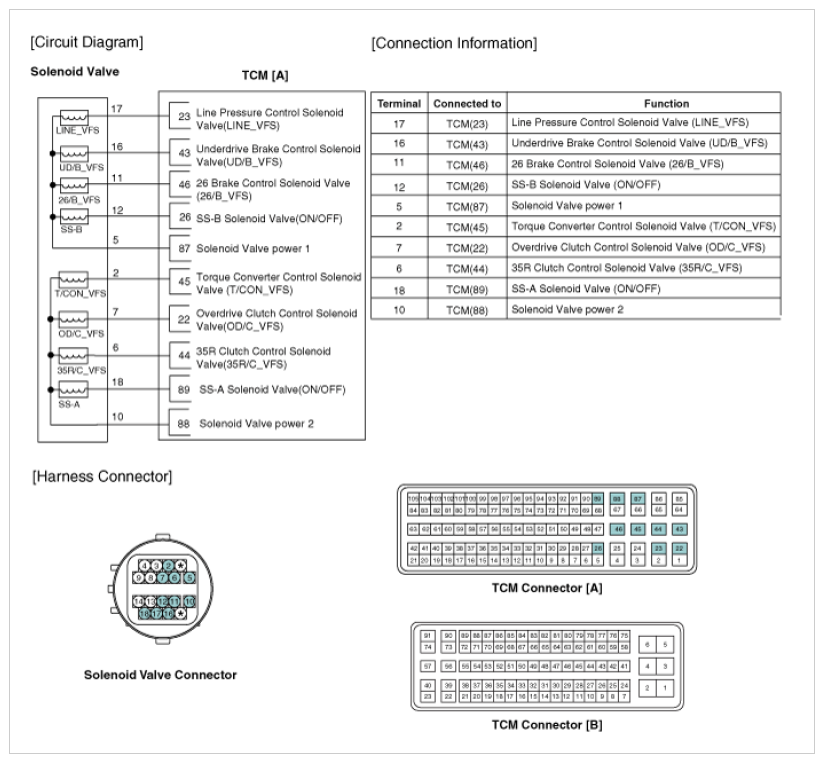

Fig 1: Line Pressure Control Solenoid Valve Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
