Repair Procedures: Adjustment

WARNING: This page is about a different car, the 2016 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. After loosening the tail gate hinge (A) mounting bolt, adjust the tail gate by moving it up and down, or right and left.
  2. Adjust the tail gate height by turning the tail gate overslam bumpers (B).
  3. After loosening the tail gate striker (C) mounting bolts, adjust the tail gate striker by moving it up and down, or right and left.

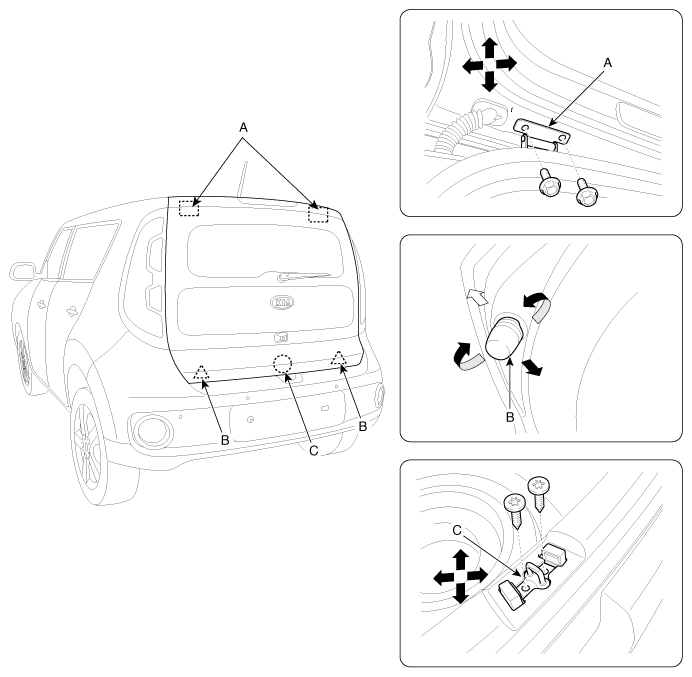

    Fig 1: Adjust Tail Gate Height By Turning Tail Gate Overslam Bumpers
    G11934466Courtesy of KIA MOTORS AMERICA, INC.
