FOB Status Check

WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "FOB KEY STATUS INFORMATION".

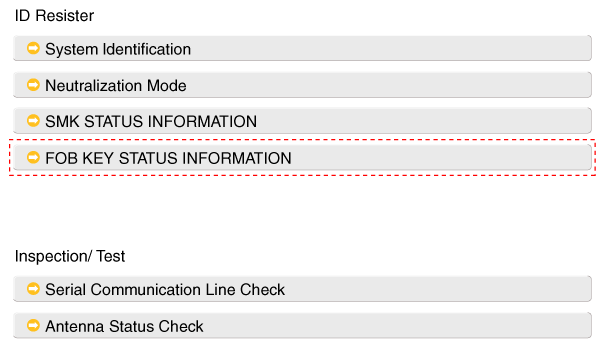

    Fig 1: Screen Display - ID Register
    G10744849Courtesy of KIA MOTORS AMERICA, INC.

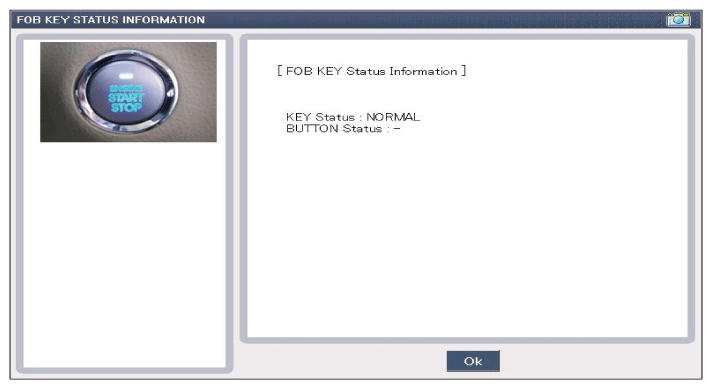

    Fig 2: Screen Display - FOB Key Status Information
    G10744850Courtesy of KIA MOTORS AMERICA, INC.
