Section 43 (Heater System)
>>
Heater Unit
>>
Components And Components Location
>>
Components
Components And Components Location: Components
WARNING:
This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
[LH]

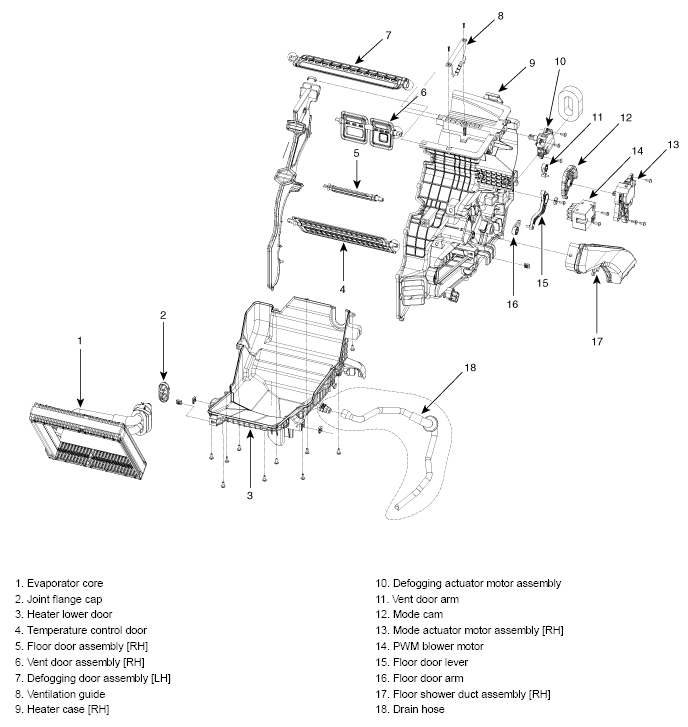

Fig 1: Heater Unit Related Components (LH)
Courtesy of KIA MOTORS AMERICA, INC.
[RH]

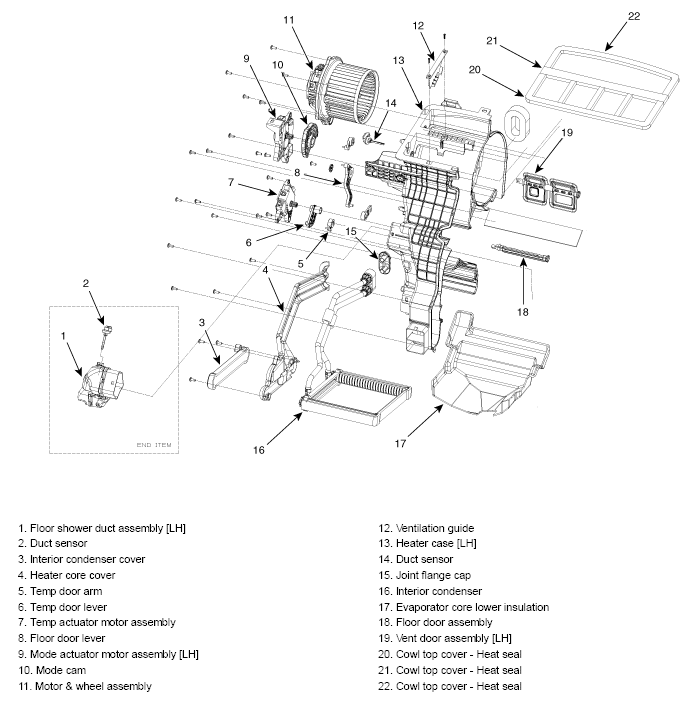

Fig 2: Heater Unit Related Components (RH)
Courtesy of KIA MOTORS AMERICA, INC.
