Power Circuit Inspection

WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Ignition "OFF".
Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.
Disconnect the Passenger side Body sense sensor ECU connector.
Connect the battery (-) terminal cable and start engine.
Measure voltage between Pin No. 3 (ON/START Input) terminal of the Passenger side Body sense sensor ECU harness connector and chassis ground.
Specification: B+

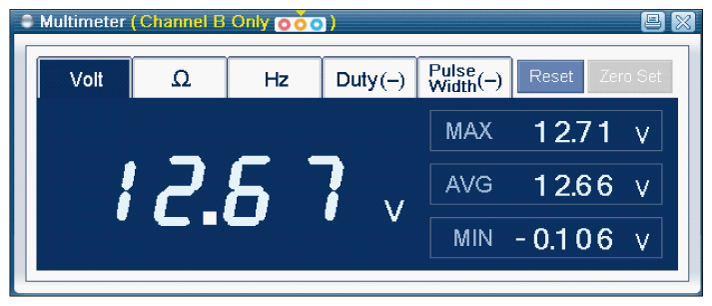

Fig 1: Screen Display - Multimeter (Channel B Only; 12.67)
Courtesy of KIA MOTORS AMERICA, INC.
Is the measured voltage within specifications?
YES
- Go to "GROUND CIRCUIT INSPECTION " procedure.
NO
- Check for open/short in harness.
- Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
