Monitor GDS Data
WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
- Ignition "OFF", connect GDS.
- Ignition "ON" (Power Button LED "Red"), select "Current Data" mode.

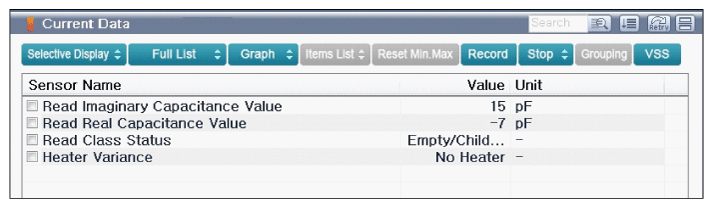

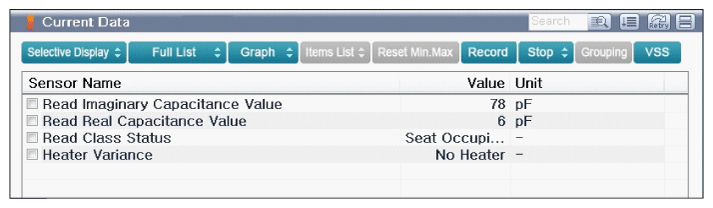

- Monitor the "Read Class Status" parameter on the GDS.
Courtesy of KIA MOTORS AMERICA, INC.
- Has a problem been found?
YES
- Go to "BODY SENSOR RESET " procedure.
NO
- Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
