Signal Waveform & Data

WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

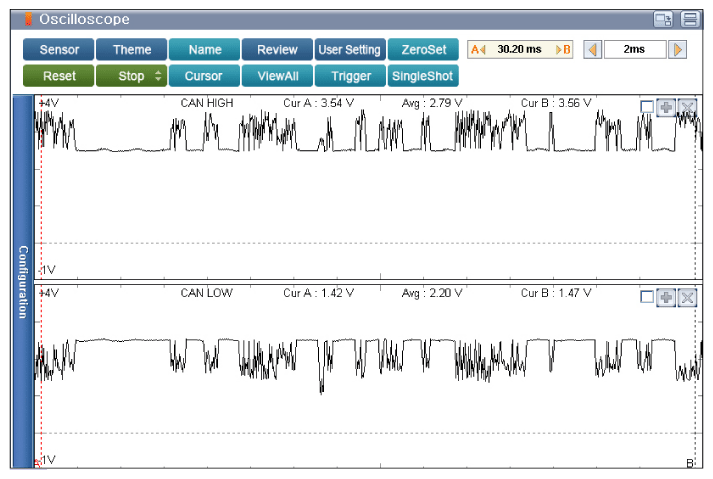

Fig 1: Screen Display - Normal C-CAN Signal Waveform
G10749186Courtesy of KIA MOTORS AMERICA, INC.
