Section 189 (Audio/Video/Navigation (AVN) System)
>>
Audio Remote Control
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different car, the 2017 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

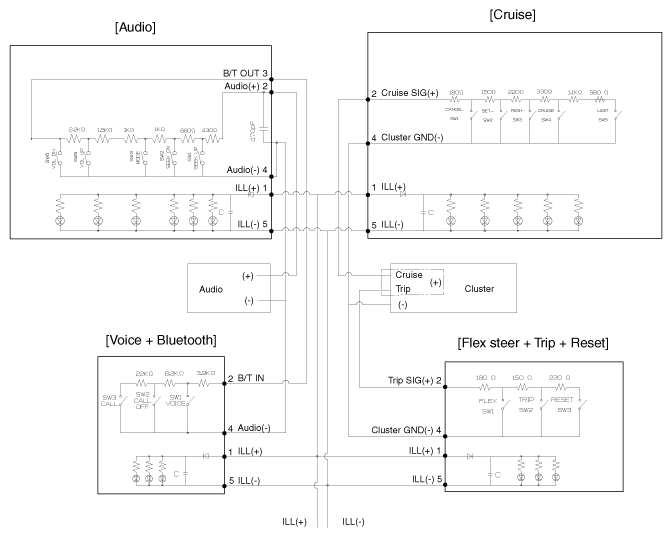

Fig 1: Audio Remote Control
Courtesy of KIA MOTORS AMERICA, INC.

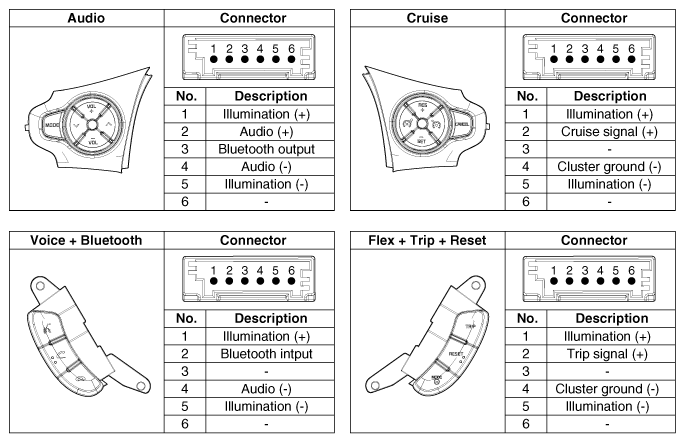

Fig 2: Audio Remote Control Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
