Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.
Remove the center fascia panel (A) from the crash pad.

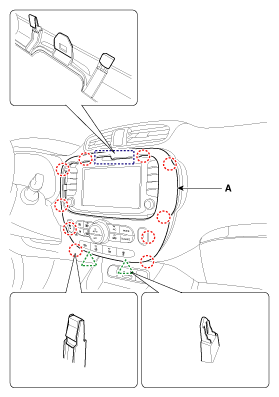

Fig 1: Remove Center Fascia Panel From Crash Pad
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A) from the center fascia panel.

Fig 2: Locate Center Fascia Panel Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the AVN head unit (A) after loosening the mounting screws.

Fig 3: Locate AVN Head Unit With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A) from the AVN head unit.

Fig 4: Locate AVN Head Unit Connectors
Courtesy of KIA MOTORS AMERICA, INC.
