Terminal And Connector Inspection

WARNING: This page is about a different car, the 2017 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Many malfunctions in the electrical system are caused by poor connection. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
  2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
  3. Has a problem been found?

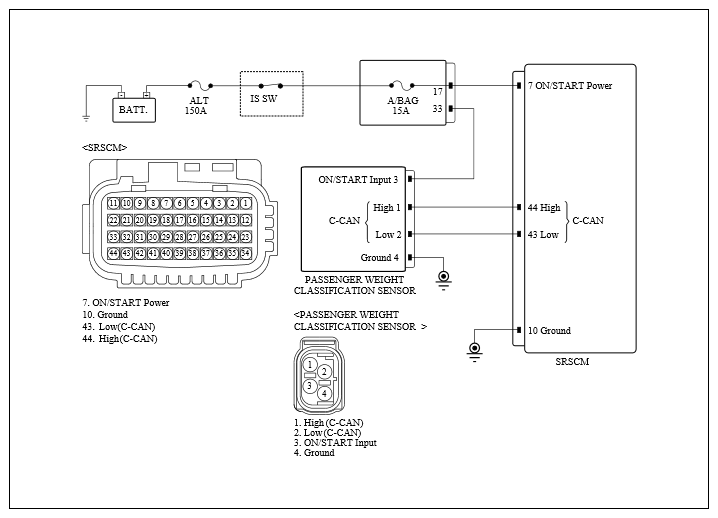

    Fig 1: Passenger Side Body Sense Sensor Mat Circuit
    G11947655Courtesy of KIA MOTORS AMERICA, INC.

    YES

    NO
