Components And Components Location: Components

WARNING: This page is about a different car, the 2017 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

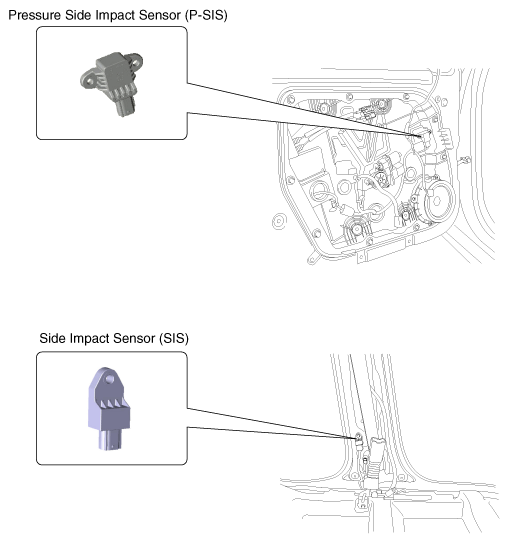

Fig 1: Pressure Side Impact Sensor (P-SIS) And Side Impact Sensor (SIS) Components
G11933785Courtesy of KIA MOTORS AMERICA, INC.
