Monitor GDS Data

WARNING: This page is about a different car, the 2016 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ignition "OFF"
  2. Refer to "PAS SENSOR CONNECTOR REMOVAL " and remove necessary parts to get access to Front Left PAS Sensor connector.
  3. Ignition "ON"
  4. Back probe and measure signal waveform between Pin No. 1 (LIN) terminal of Front Left PAS sensor harness connector and chassis ground.

    Specification:  Refer to Fig 1 below

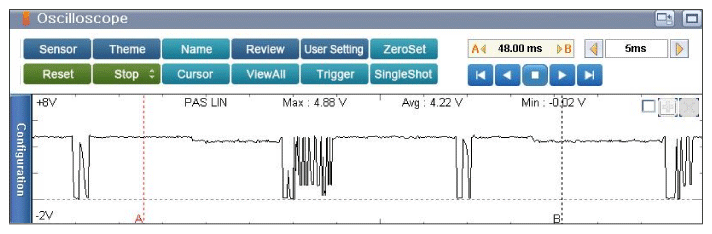

    Fig 1: Screen Display - Signal Waveform Of Parking Sensor
    G11934812Courtesy of KIA MOTORS AMERICA, INC.
  5. Is measured value within specification?

    YES

    NO
