Circuit Diagram

WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

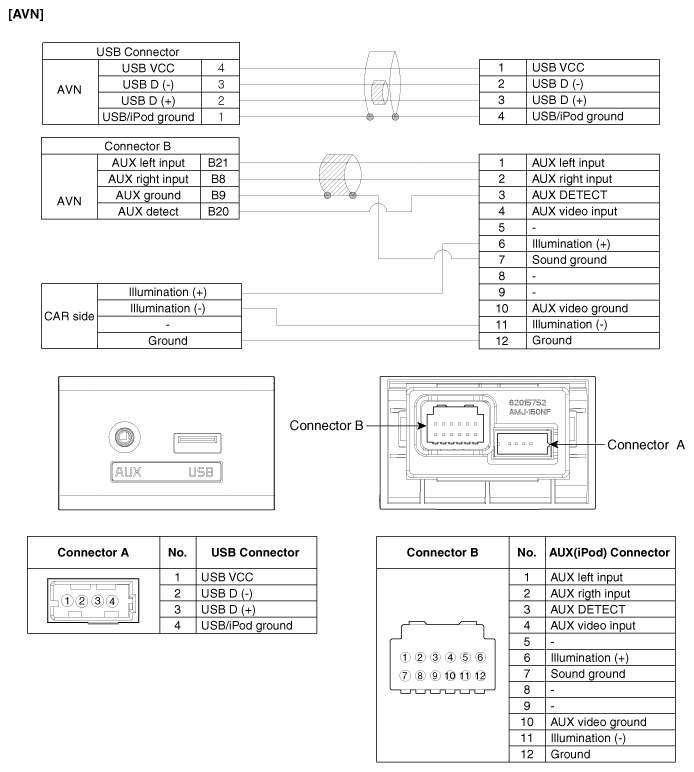

Fig 1: Multimedia Jack Circuit Diagram
G10727874Courtesy of KIA MOTORS AMERICA, INC.
