Description And Operation: Description

WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Using the added option of multimedia jack on the console upper cover, users can link their external portable music players such as MP3 and iPod to the vehicle's sound system via this jack.

If the output level of the external media does not match the specifications of the AUX input, sound distortions may occur although the audio unit is not defective.

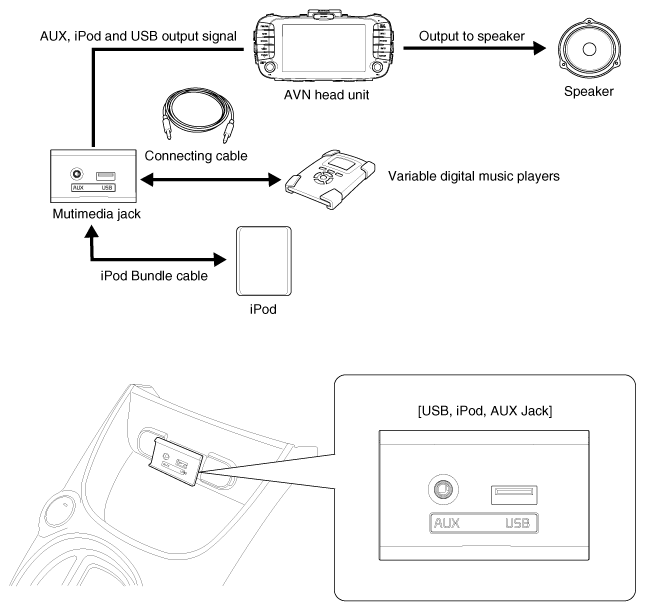

Fig 1: Multimedia Jack Communication Diagram
G10727875Courtesy of KIA MOTORS AMERICA, INC.
