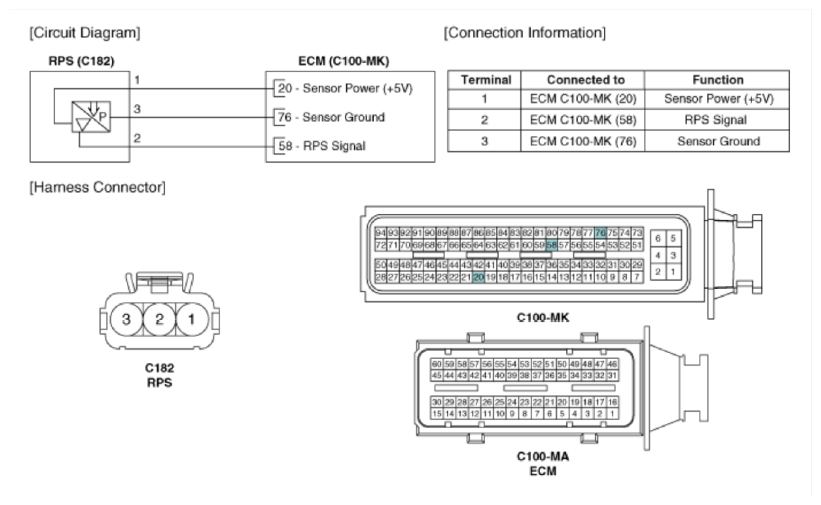

Home >> Kia >> 2015 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> Rail Pressure Sensor (RPS) >> Schematic Diagrams >> Circuit Diagram >> (M/T)
