Repair Procedures: Disassembly

  1. Remove the snap ring (A).
    Fig 1: Snap Ring
    G09777844Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the hub assembly from the knuckle assembly.
    1. Install the front knuckle assembly (A) on press.
    2. Lay a suitable adapter (B) upon the hub assembly shaft.
      Fig 2: Front Knuckle Assembly And Adapter
      G09777845Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the hub bearing inner race from the hub assembly.
    1. Install a suitable tool (A) for removing the hub bearing inner race on the hub assembly.
    2. Lay the hub assembly and tool (A) upon a suitable adapter (B).
    3. Lay a suitable adapter (C) upon the hub assembly shaft.
    4. Remove the hub bearing inner race (D) from the hub assembly by using press.

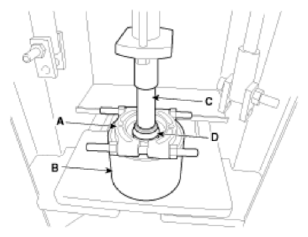

      Fig 3: Tool, Adapter, And Hub Bearing Inner Race
      G09777846Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the hub bearing outer race from the knuckle assembly.
    1. Lay the hub assembly (A) upon a suitable adapter (B).
    2. Lay a suitable adapter (C) upon the hub bearing outer race.
    3. Remove the hub bearing outer race from the knuckle assembly by using press.
      Fig 4: Hub Assembly, Adapter And Hub Bearing Outer Race
      G09777847Courtesy of KIA MOTORS AMERICA, INC.
  5. Replace hub bearing with a new one.
