Repair Procedures: Replacement

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the front seat assembly.
(Refer to "FRONT SEAT ASSEMBLY ")
Push the lock pin (B), remove the front seat headrest (A).

Fig 1: Removing Front Seat Headrest
Courtesy of KIA MOTORS AMERICA, INC.

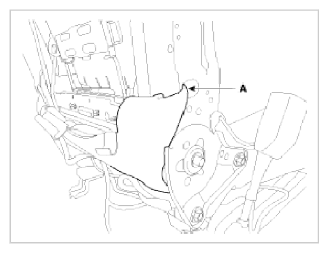

Remove the front seat lower protector (A).

Fig 2: Front Seat Lower Protector
Courtesy of KIA MOTORS AMERICA, INC.

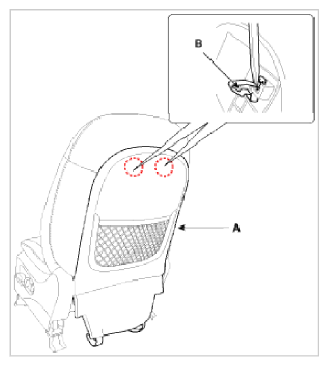

Push the lock pins (B) from the front seat back board (A).
CAUTION:
- Push the middle area of clip using the flat head screwdriver.
- Be careful not to damage the lock pins.
Fig 3: Pushing Lock Pins From Front Seat Back Board
Courtesy of KIA MOTORS AMERICA, INC.

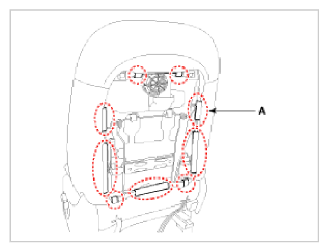

Fig 4: Front Seat Back Board Lock Pins Pushing Sequence
Courtesy of KIA MOTORS AMERICA, INC.

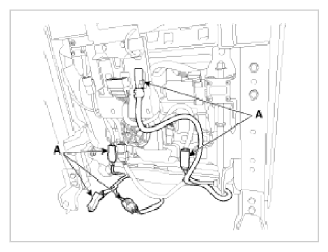

Disconnect the connectors (A).

Fig 5: Connectors
Courtesy of KIA MOTORS AMERICA, INC.

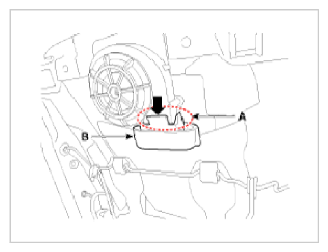

Detach the air ventilation seat back duct (B) by pulling the lock pin (A).

Fig 6: Air Ventilation Seat Back Duct And Lock Pin
Courtesy of KIA MOTORS AMERICA, INC.

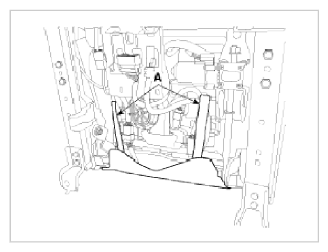

Pull out the hooks (A) by the front seat back frame.

Fig 7: Front Seat Back Frame Hooks
Courtesy of KIA MOTORS AMERICA, INC.
Remove the protectors (A) on both sides.

Fig 8: Protectors
Courtesy of KIA MOTORS AMERICA, INC.
Turn the front seat back cover inside out. Then pull out the headrest guides (A) while pinching both side of the lower part of the guides, and remove them.

Fig 9: Pulling Out Headrest Guides
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front seat back cover (A) from the front seat back frame.

Fig 10: Front Seat Back Cover
Courtesy of KIA MOTORS AMERICA, INC.

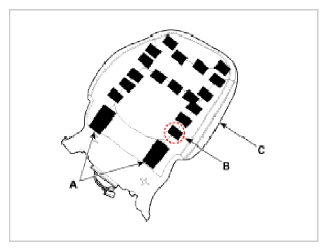

After removing the Velcro tape (A) and hog-ring clips (B) on the front of seat back and remove the front seat back cover (C).

Fig 11: Velcro Tape, Hog-Ring Clips And Front Seat Back Cover
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- To prevent wrinkles, make sure the material is stretched evenly over the cover (B) before securing the hog-ring clips (A).
- Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).

  Fig 12: Replacing Hog-Ring Clips Using Tool
  Courtesy of KIA MOTORS AMERICA, INC.
