Repair Procedures: Replacement

  1. Remove the tail gate weatherstrip (A).
    NOTE:
    • Do not apply sealant to the body.

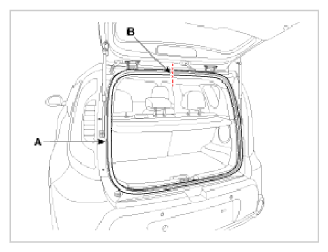

    Fig 1: Identifying Tail Gate Weatherstrip
    G09778176Courtesy of KIA MOTORS AMERICA, INC.
  2. Install in the reverse order of removal.

    Information

    • Install the weatherstrip aligned with canter line (B).
