Home >> Kia >> 2015 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Lighting System >> Mood Lamp >> Components And Components Location >> Components

Components And Components Location: Components

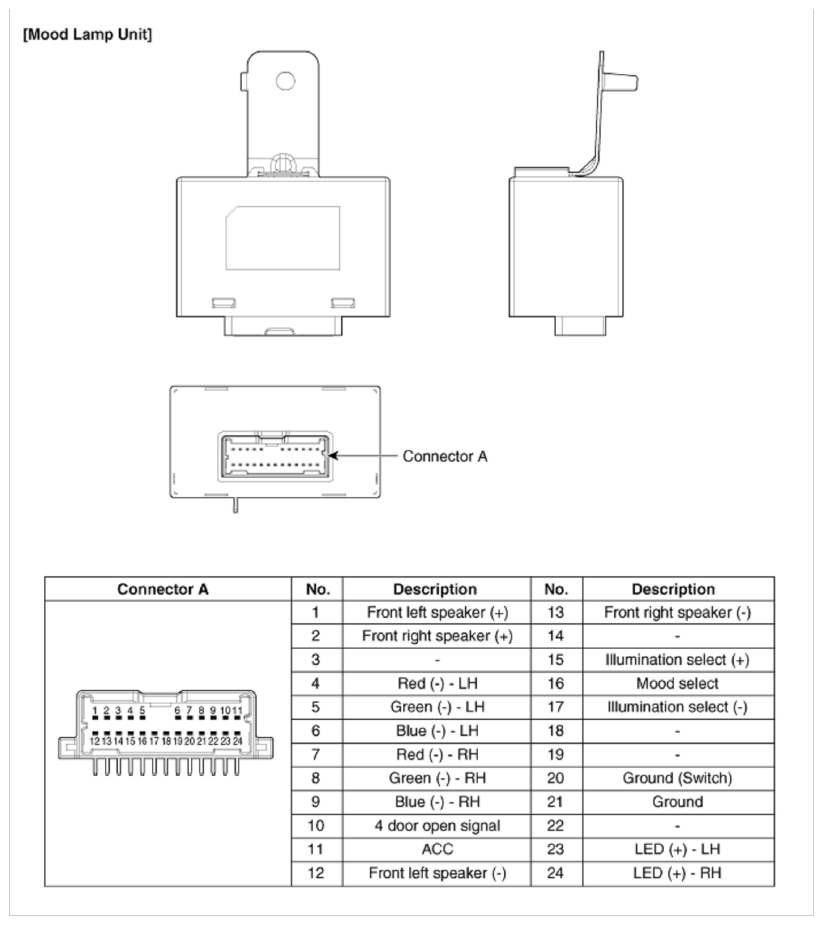

Fig 1: Mood Lamp Unit Components Location
G09778345Courtesy of KIA MOTORS AMERICA, INC.

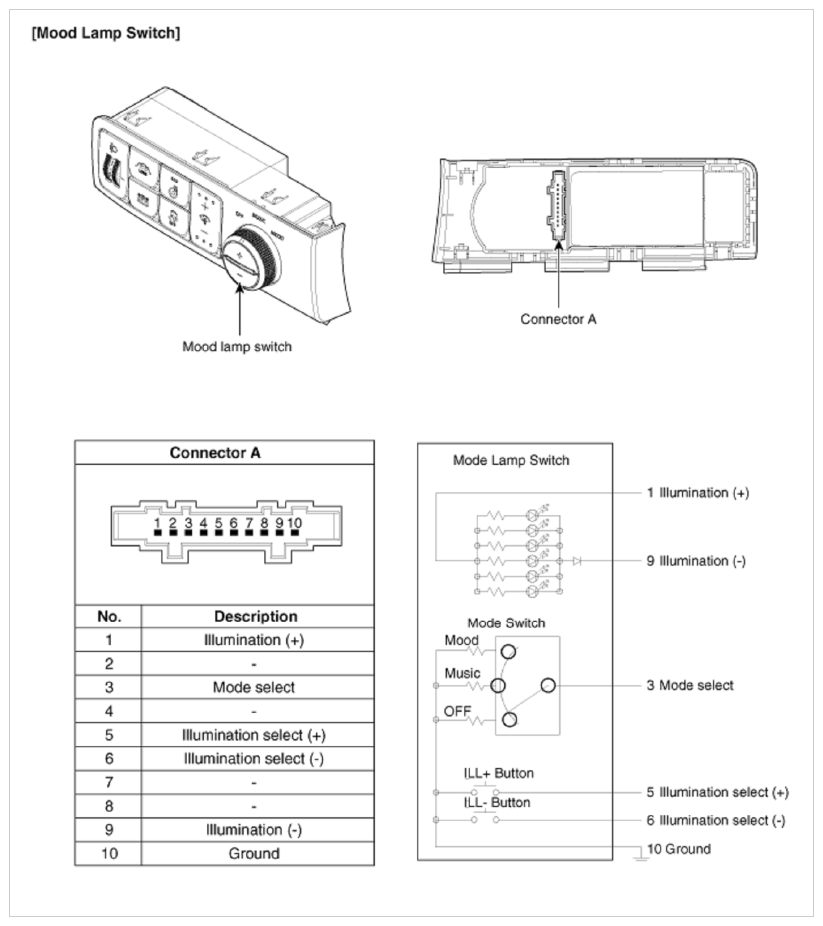

Fig 2: Mood Lamp Switch Components Location
G09778346Courtesy of KIA MOTORS AMERICA, INC.
