Transaxle Range Switch (A/T) Connector End View (C165)

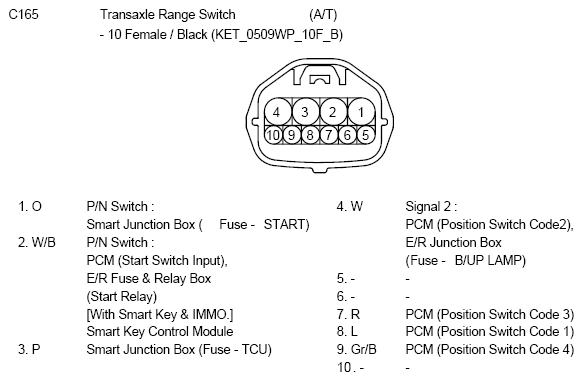

Fig 1: Transaxle Range Switch (A/T) Connector End View (C165)

G10793494

Courtesy of KIA MOTORS AMERICA, INC.
