Head Lamp RH Connector End View (C115-R)

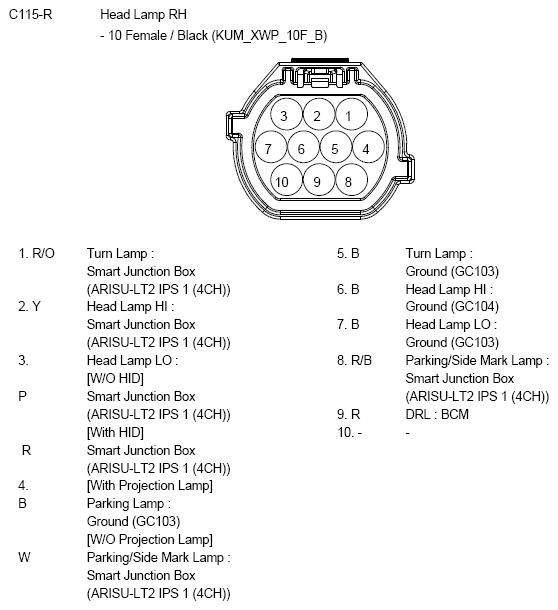

Fig 1: Head Lamp RH Connector End View (C115-R)

G10793462

Courtesy of KIA MOTORS AMERICA, INC.
