Component Inspection

Perform ETC Motor Actuation Test
1. Connect GDS to Data Link Connector (DLC).
2. G KEY "ON" & ENG "OFF".
3. Perform "Actuation Test" for ETC Motor.

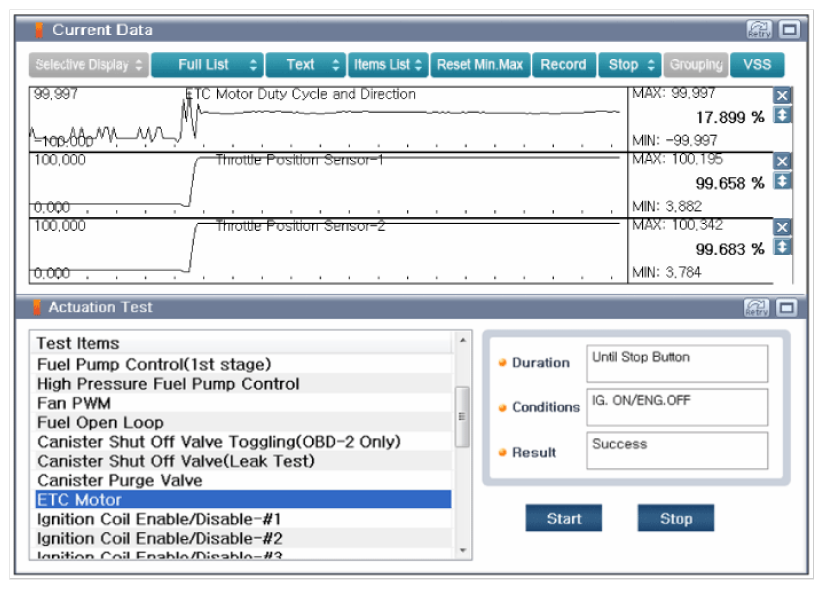

  Fig 1: ETC Motor Actuation Test Screen
  Courtesy of KIA MOTORS AMERICA, INC.
Inspect ETC Motor
1. IG Key "OFF".
2. Disconnect ETC Motor connector.
3. Measure resistance between power and control terminal of the ETC Motor. (Component Side)
  Specification: Approx. 2 ~ 3Ω [20°C (68 °F)]

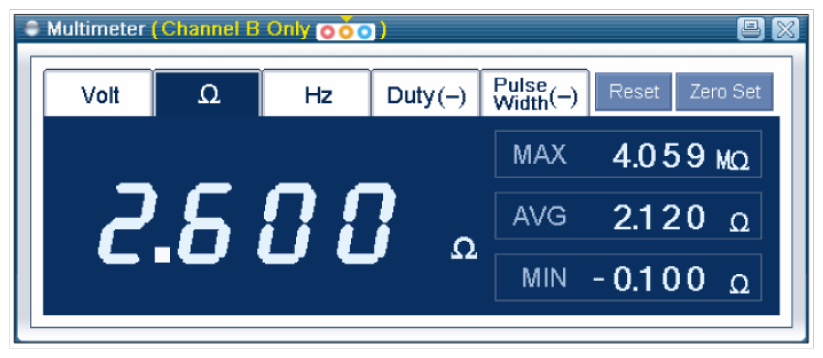

  Fig 2: ETC Motor Resistance
  Courtesy of KIA MOTORS AMERICA, INC.
Confirm Part Inspection
1. Does the ETC Motor operate properly? (Check variation)
  YES
  - Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Carefully re-do this troubleshooting guide steps.
  - If problem still occurs, replace ETC Motor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
