System Inspection

Resetting Adaptive Values
1. Connect GDS to DLC (Data Link Cable).
2. IG "ON" & ENG "OFF".
3. Select the "Vehicle S/W Management" about related DTC with GDS.

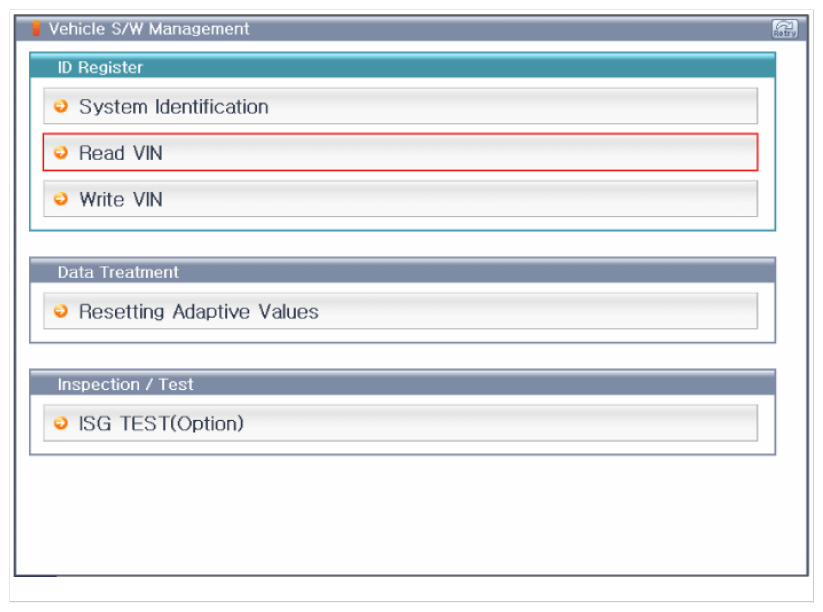

  Fig 1: Select Read VIN Screen
  Courtesy of KIA MOTORS AMERICA, INC.

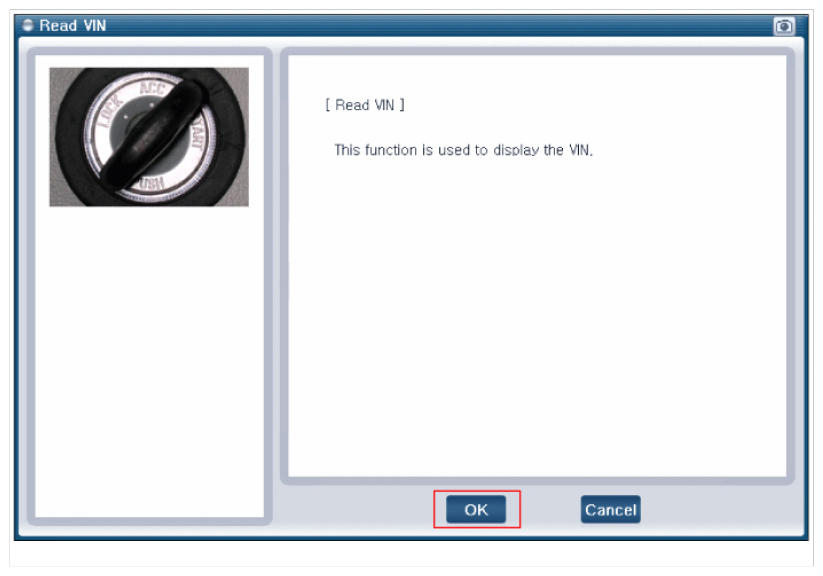

  Fig 2: Press OK Button (IG ON, ENG OFF) Screen
  Courtesy of KIA MOTORS AMERICA, INC.

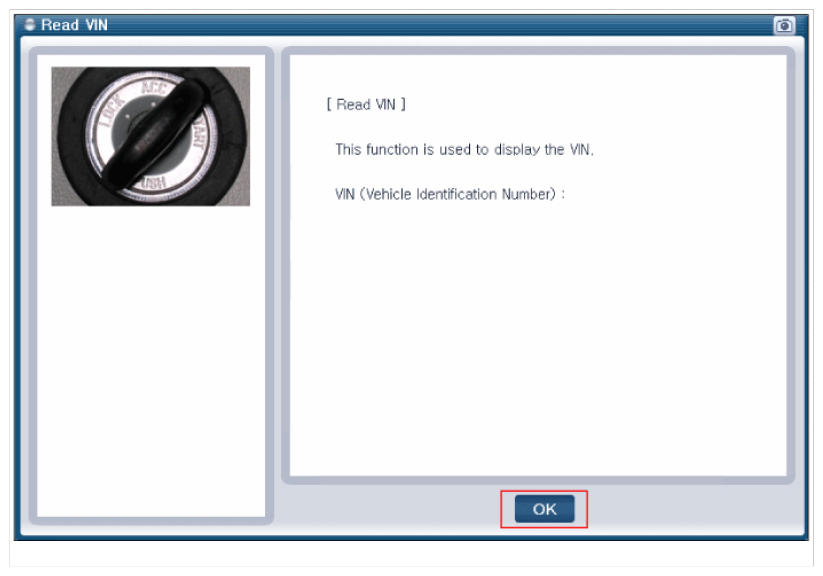

  Fig 3: Press OK button (IG ON, ENG OFF) VIN Number Screen
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 4: Check VIN Number Completion Screen
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 5: Select Write VIN Screen
  Courtesy of KIA MOTORS AMERICA, INC.

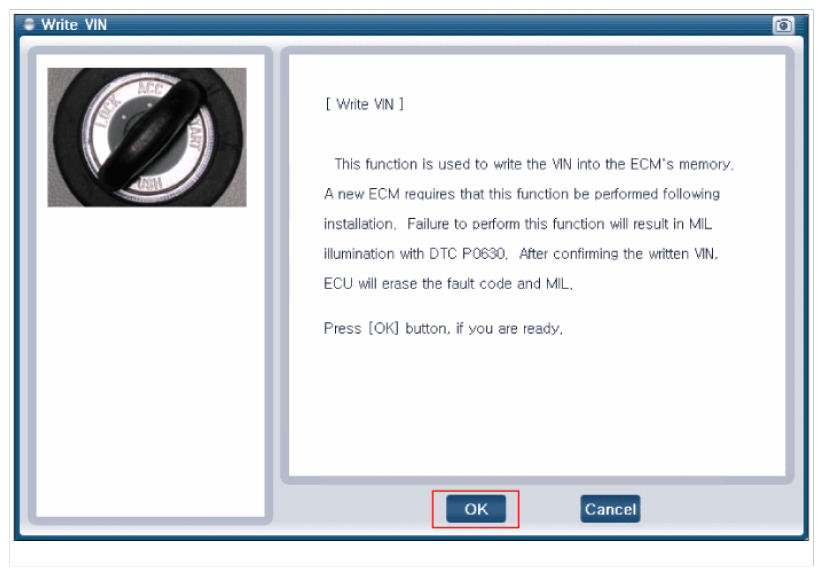

  Fig 6: Press OK button (IG ON, ENG OFF) Screen
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 7: Press OK button (IG ON, ENG OFF) VIN Number Screen
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 8: Write VIN Number Screen
  Courtesy of KIA MOTORS AMERICA, INC.

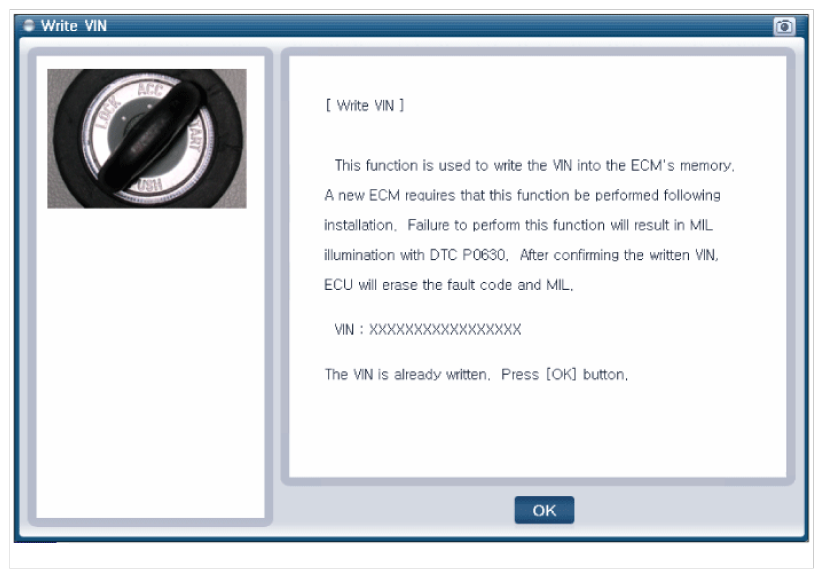

  Fig 9: Check VIN Number Completion Screen
  Courtesy of KIA MOTORS AMERICA, INC.
4. When the "Read VIN, Write VIN" has been finished perfectly, press "OK" button and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
