Terminal and Connector Inspection

  1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
  2. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
  3. Has a problem been found?

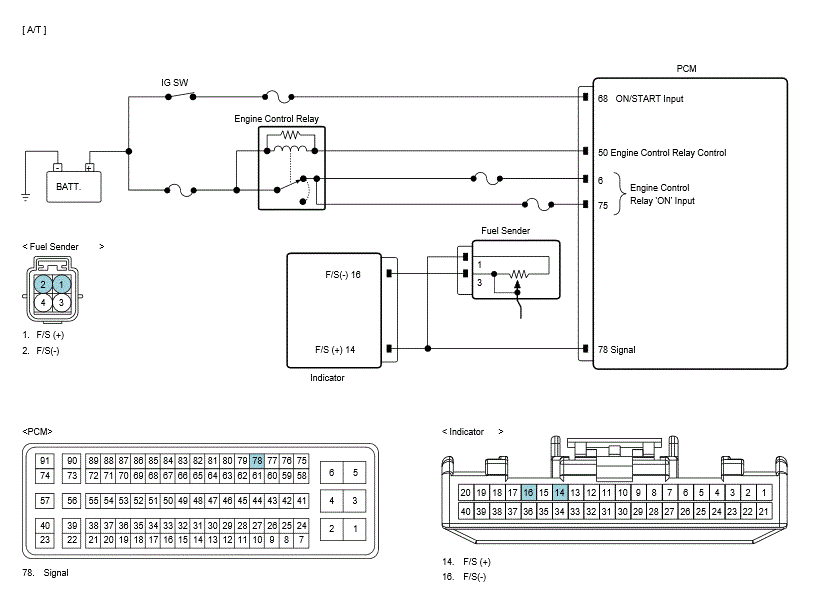

    Fig 1: Fuel Sender Circuit Diagram (A/T)
    G00554034Courtesy of KIA MOTORS AMERICA, INC.

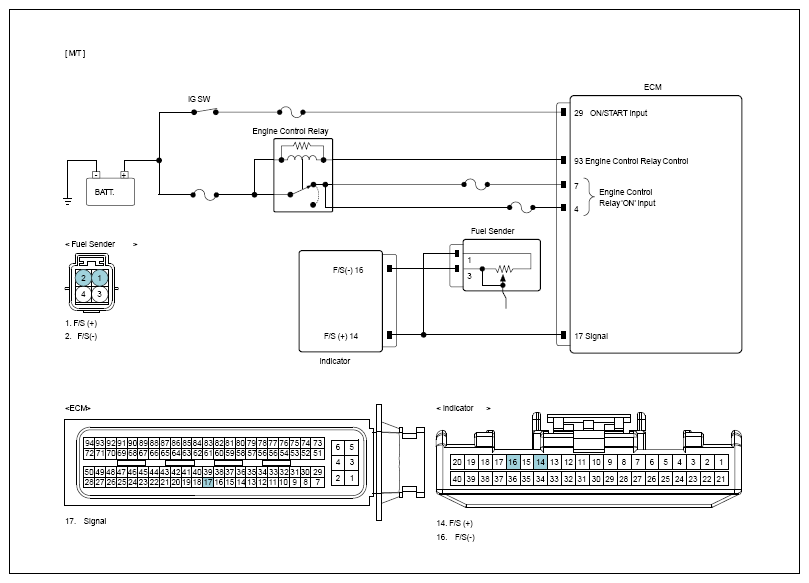

    Fig 2: Fuel Sender Circuit Diagram (M/T)
    G09777024Courtesy of KIA MOTORS AMERICA, INC.
