Monitor DTC Status

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON".
  3. Monitor "Diagnostic Trouble Codes (DTC)"  with GDS.
  4. Is DTC status displayed as Present?

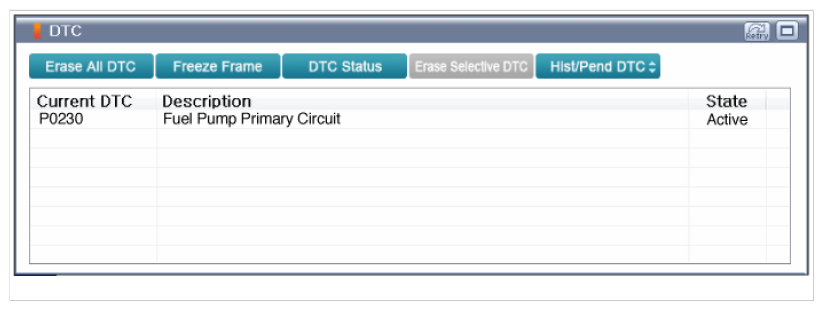

    Fig 1: Display - DTC Description Screen
    G09776598Courtesy of KIA MOTORS AMERICA, INC.

    YES

    NO
