Driver Front Impact Sensor Connector End View (C113-L)

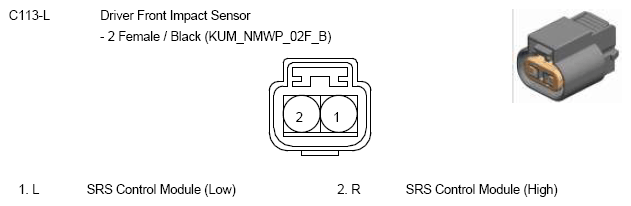

Fig 1: Driver Front Impact Sensor Connector End View (C113-L)

G10793458

Courtesy of KIA MOTORS AMERICA, INC.
