Repair Procedures: Inspection: Notes

With the washer motor connected to the reservoir tank, fill the reservoir tank with water.
NOTE: Before filling the reservoir tank with water, check the filter for foreign material or contamination. if necessary, clean the filter.
Connect positive (+) battery cables to terminal 1 and negative (-) battery cables to terminal 2 respectively.
Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles.
If they are abnormal, replace the washer motor.

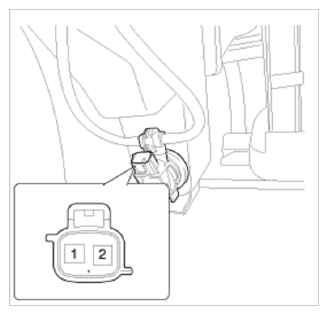

Fig 1: Washer Motor Connector End View
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Wiper Motor Connector Terminal Chart
Courtesy of KIA MOTORS AMERICA, INC.
